Enter the proper CLI commands and analysis the outputs on the Cisco routers to answer the multiple choice questions

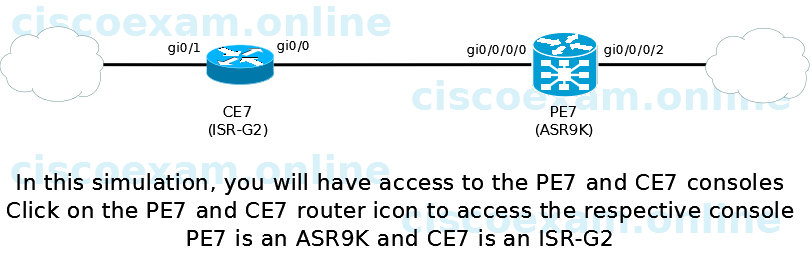

From the network topology diagram, click on the router icon to gain access to the console ofthe router
No console or enable passwords are required
There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button
Not all the CLI commands or commands options are supported or required for this simulation.
All the devices in this simulation have been pre-configured and you are not required to enter in any configurations.
CE7#
RP/0/RSP0/CPU0:PE7#
On CE7 which statement is correct regarding Traffic the QoS policy applied to the gi0/0 interface in the input direction?
| A. |
Traffic matching the "MARKING2" class-map will be marked with qos-group 5 | |
| B. |
Traffic matching the "MARKING1" class-map will be marked with MPLS EXP 5 | |
| C. |
All incoming packets not matched bythe"MARKING1" class-map will be dropped | |
| D. |
All incoming packets with the DSCP EF marking with be marked with MPLS EXP 0 |
Issue: show policy-map interface gi0/0
First find out which policy-map is applied (it called something like QOSPOLICY1) A is wrong.
Class MARKING2 is indeed defined but not applied to that policy-map.
There are two class-maps applied MARKING1 and class-default. Both will mark the traffic with MPLS EXP values.
default:
set mpls experimental imposition 0
MARKING1
set mpls experimental imposition 5
