Enter the proper CLI commands and analysis the outputs on the Cisco routers to answer the multiple choice questions

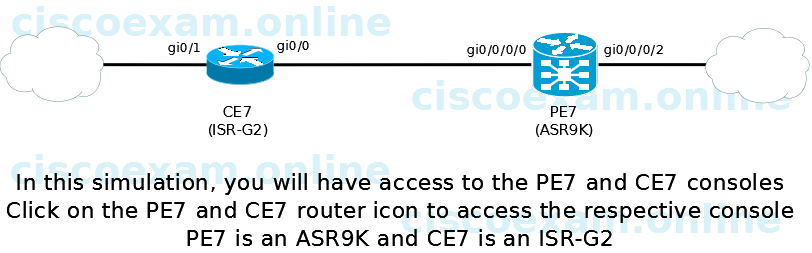

From the network topology diagram, click on the router icon to gain access to the console ofthe router
No console or enable passwords are required
There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button
Not all the CLI commands or commands options are supported or required for this simulation.
All the devices in this simulation have been pre-configured and you are not required to enter in any configurations.
CE7#
RP/0/RSP0/CPU0:PE7#
After reviewing present router configuration CE7 .which two statements are correct regarding behavior of the "IIq" policy-map?
| A. |
Traffic matched by the "cisco1" class-map will be assigned to the priority queue. | |
| B. |
The "IIq" QoS policy is applied to the gi0/0 interface in the output direction. | |
| C. |
Traffic matched bythe"cisco2" class-map has a maximum bandwidth of 30%. | |
| D. |
Traffic matched bythe"cisco3" class-map has no priority and has a minimum bandwidth guarantee of 20%. | |
| E. |
There are no packets being matched by the "class-default" traffic class in the "IIq" policy. |
You will notice that "cisco1" class map is assigned to the priority queue (the command is configured under policy-map llq class cisco1 priority xxx)
"cisco2" class map: is indeed configured using bandwidth 30%, however that defines the minimum bandwidth but not the maximum.
"cisco3" class map: is indeed configured using "bandwidth 20%", No priority configured and that will define the minimum guaranteed bandwidth.
The last choice is wrong! check under "show policy-map interface" There are 4 or more packets being matched by the "class-default" traffic class in the "IIq" policy.
Class-map: class-default (match-any)
4 packets, 968 bytes
