Enter the proper CLI commands and analysis the outputs on the Cisco routers to answer the multiple choice questions

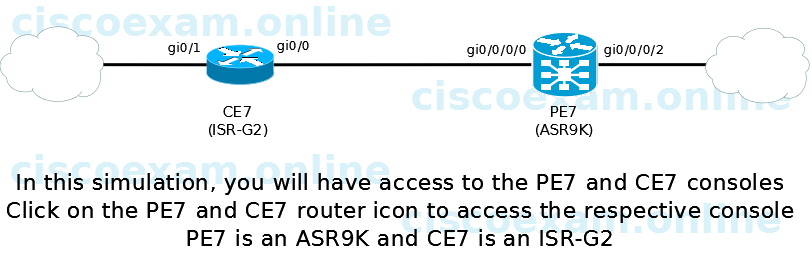

From the network topology diagram, click on the router icon to gain access to the console ofthe router
No console or enable passwords are required
There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button
Not all the CLI commands or commands options are supported or required for this simulation.
All the devices in this simulation have been pre-configured and you are not required to enter in any configurations.
CE7#
RP/0/RSP0/CPU0:PE7#
On PE7 which statement is correct regarding the "traffic-policing" policy-map?
| A. |
The "traffic-policing" QoS policy is applied to the Gi0/0/0/0 interface in the outbound direction. | |
| B. |
The "traffic-policing" QoS policy will police the traffic matched by the "test12" ACL to 3 mbps and will drop all exceeding traffic. | |
| C. |
All incoming traffic not matched by the "test12" ACL to the Gi0/0/0/0 interface will be dropped. | |
| D. |
The "traffic-policing" QoS policy is using dual rate class-based traffic policing. |
#show running-config policy-map
#show policy-map
