SIMULATION

Instructions
* Enter the proper IOS CLI show commands and analysis the show outputs on the Cisco switches to answer the multiple-choice questions.
* Not all show commands or show commands options are supported or required for this simulation.
* THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION.
* From the Topology, click on the switch icon to gain access to the console of the switch. No console or enable passwords are required.
* To access the multiple-choice questions, click on the numbered boxes on the left of the top panel.
* There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button.

Scenario
Refer to the topology diagram. Use the appropriate show commands on the Cisco switches to answer the multiple-choice questions.

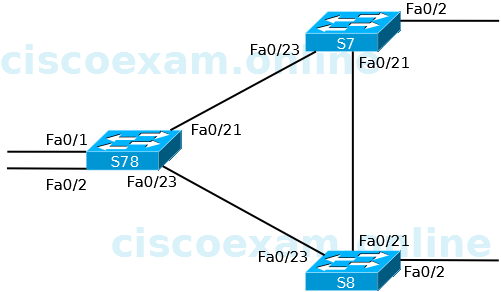

Topology


S7#
S8#
S78#

Which spanning-tree protocol is running on the switches?

multiple spanning-tree protocol
Use the “show spanning-tree” command to see the “Spanning tree enabled protocol mstp” output.
