SIMULATION

Instructions
* Enter the proper IOS CLI show commands and analysis the show outputs on the Cisco switches to answer the multiple-choice questions.
* Not all show commands or show commands options are supported or required for this simulation.
* THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION.
* From the Topology, click on the switch icon to gain access to the console of the switch. No console or enable passwords are required.
* To access the multiple-choice questions, click on the numbered boxes on the left of the top panel.
* There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button.

Scenario
Refer to the topology diagram. Use the appropriate show commands on the Cisco switches to answer the multiple-choice questions.

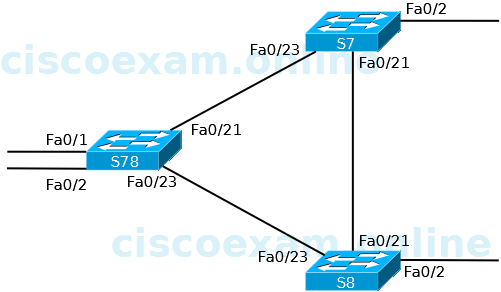

Topology


S7#
S8#
S78#

What Is the bridge priority and the MAC address of the root bridge for vlan1?

Priority 32768 and MAC address e8ba.70b5.6c00
Use the “show spanning-tree mst” command on each switch to find the root port and the priority.
