Customer is configuring FCoE and NPV in the Cisco Nexus 5000 Series Switches. Please go through Topology and Exhibit 1 through 4 to answer questions.

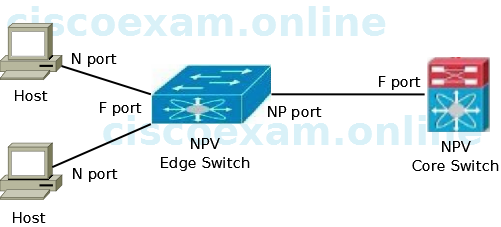

Topology:
Exhibit 1:
switch# configure terminal
switch(config)# npv enable
Exhibit 2:
switch#show npv flogi-table
----------------------------------------------------------------------------------------------
SERVER EXTERNAL
INTERFACE VSAN FCID PORT NAME NODE NAME INTERFACE
----------------------------------------------------------------------------------------------
vfc3/1 1 0xee0008 10:00:00:00:c9:60:e4:9a 20:00:00:00:c9:60:e4:9a fc2/1
vfc3/1 1 0xee0009 20:00:00:00:0a:00:00:01 20:00:00:00:c9:60:e4:9a fc2/2
vfc3/1 1 0xee000a 20:00:00:00:0a:00:00:02 20:00:00:00:c9:60:e4:9a fc2/3
vfc3/1 1 0xee000b 33:33:33:33:33:33:33:33 20:00:00:00:c9:60:e4:9a fc2/4
Exhibit 3:
switch#show npv status
npiv is enabled
External Interfaces:
====================
Interface: fc2/l, VSAN: 1, FCID: Ox1cOOOO, State: Up
Interface: fc2/2, VSAN: 1, FCID: 0x040000, State: Up
Interface: fc2/3, VSAN: 1, FCID: 0x260000, State: Up
Interface: fc2/4, VSAN: 1, FCID: OxlaOOOO, State: Up
Number of External Interfaces: 4
Server Interfaces:
==================
Interface: vfc3/1, VSAN: 1, NPIV: No, State: Up
Number of Server Interfaces: 1
Exhibit 4:
switch# show npv status
npiv is enabled
disruptive load balancing is enabled
External Interfaces:
====================
Interface: fc2/1, VSAN: 2, FCID: Ox1c0000, state: up
What can you tell about server ports and their external Interfaces from the exhibits?
| A. |
vfc3/1 is not correctly connected to server external interface fc2/1. | |
| B. |
vfc3/1 is not correctly connected to server external Interface fc2/1 and flogi are unsuccessful. | |
| C. |
Server interface vfc3/1 is assigned to NP uplinks fc2/1, fc2/2, fc2/3 and fc2/4. There are 4 successful flogi. | |
| D. |
Server interface vfc3/1 is assigned to NP uplinks fc2/1, fc2/2, fc2/3 and fc2/4. There are 4 flogi are in initialization state. |
