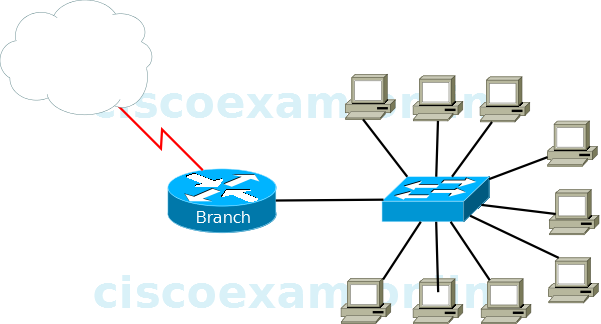

A router has been configured to provide the nine users on the branch office LAN with Internet access, as shown in the diagram. It is found that some of the users on the LAN cannot reach the Internet. Based on the topology and router output shown, which command should be issued on the router to correct the problem?
Branch#show interfaces FastEthernet0
FastEthernet0 is up, line protocol is up
Hardware address is 000c.ce8d.8860
Internet address is 192.168.10.30/30
MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usee,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA, loopback not set
Keepalive set (10sec)
Half-duplex, 10Mb/s, 100BaseTX/FX
| A. |
Branch(config-if)# no shutdown | |
| B. |
Branch(config-if)# duplex full | |
| C. |
Branch(config-if)# no keepalive | |
| D. |
Branch(config-if)# ip address 192.168.10.30 255.255.255.240 | |
| E. |
Branch(config-if)# bandwidth 100 | |
| F. |
Branch(config-if)# encapsulation 802.3 |
